GJQ40-17 Cementing Skid

GJQ40-17 Cementing Skid

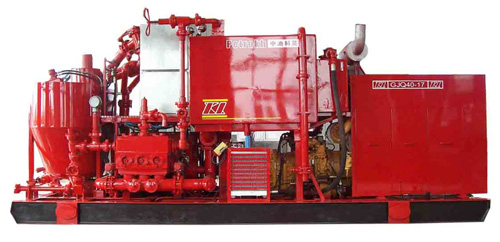

GJQ40-17 skid mounted cementing unit is applicable in well cementing for large-depth/mid-depth/small-depth oil wells. It is used to produce cement paste, inject/pump the cement into well, etc. Apart from this, the cementing skid can be utilized in washing wells, acidizing and fracturing operations. Its main components are pedestal, diesel engine, hydraulic transfer case, plunger pump, cement filling pump, injection pump, measuring tank, cementing mixing system, high pressure discharge manifold, hydraulic pressure system, air circuit system, instrumental controlling system, etc.

Click to enlarge

  • Parameters of GJQ40-17 Skid Mounted Cementing Unit
  • Product                                                 GJQ40-17 Cementing Skid

    Engine                                                  Cummins KT19-C450/DDCS60

    Transfer Case                                     BY400/Allison OFS4700

    Plunger Pump                                     300

    Max. Working Pressure                    40Mpa

    Max. Discharge Capacity                 1700 L/min

    Centrifugal Injection Pump              4 × 3 / 2 × 3 (Optional)

    Priming Centrifugal Pump               RA6 × 5 / PN6 × 5 (Optional)

    Weight                                                14500 kg

    Dimension                                        8000 × 2300 ×3150 mm
