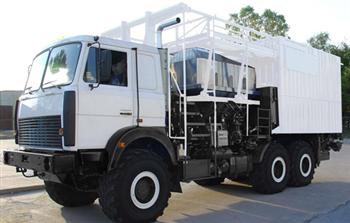

Hydration Unit
During hydraulic fracturing, hydration unit is used for preparation of water base gels with power gelling agent. Through hydration, different frac base fluids (gels) can be transferred to the blender for crosslinking. This hydration unit for gas well fracking is capable of working in extreme climates from arctic to desert and tropical conditions.
1. They can be divided into three types: truck, trailer and skid mounted hydration units.
2. Various diesel engine configurations meet many HP rating demands.
3. It is built to European Standards (optional) and qualified for CE Conformity (optional).
4. Automatic chemical control system is adopted for liquid and dry additives.
5. Suction and discharge manifolds are designed on both sides of the hydration unit.
6. Air conditioned control cabin provides clear view of this unit.
7. Other Configurations:
Hydraulically Driven Mixing Systems
Circulation Pump
Viscometer and pH Meter (Optional)
Chemical Transfer Pump
Pneumatic Remote Valve Actuators
Diesel Fired Engine Pre-Heaters
Hose Racks with Discharge and Suction Hoses
Various Quantities / Brands of Liquid Additive Pumps
Data Acquisition System
Various Chemical Totes
Storage Compartments
Diesel Fired Burners to Heat Frac Water Fluid Prior to Mixing (Optional)
