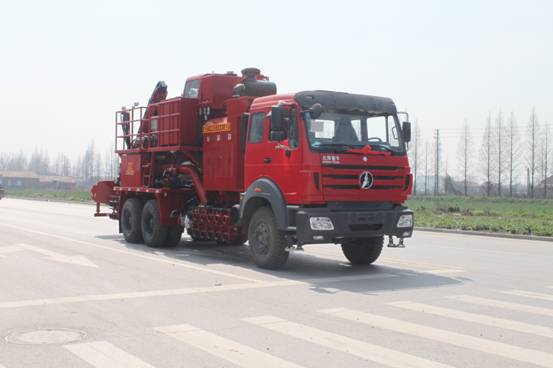

HSC360 Frac Blender

HSC360

HSC360 frac blender is suitable for providing sand slurry for fracturing units. As blending unit for oil exploitation, it is driven with hydraulic power generated by deck and chassis engines: the diesel engine generates power and put the oil pumps into motion; then, these pumps drive each motor to realize various work links, such as sand conveying, blending, cross-links, fan cooling, and so on.

Click to enlarge
  • Features

    • 1. HSC360 frac blender is applicable for heavy duty fracturing operations.

    2. With imported brand-name heavy duty chassis, it is features cross-country capacity.

    3. Installed power is 760 hp.

    4. With ultra displacement, one blending unit is enough for heavy duty fracturing unit.

    5. Multifarious automatic controlling systems are equipped, including liquid level control, density control, liquid additive control, dry additive control and discharge control system. Besides, data acquisition, feedback and programmable control operations can all be easily realized

  • Parameters of HSC360 Frac Blender

    • Product

    HSC360 Frac Blender

    Chassis

    Beiben 6 × 4/ Beiben 8 × 4/ Benz 4144

    Deck Engine

    Cummins QSK-760/DDC S60/CAT C18

    Transfer Case

    Imported

    Suction Centrifugal Pump

    GR12”×12”

    Discharge Centrifugal Pump

    14 ×12”×22”

    Maximum Displacement

    16 m3/min

    Maximum Pressure

    0.7 Mpa

    Maximum Sand Delivery Capacity

    10000 kg/min

    Discharge of Liquid Additive

    10-500L/min

    Discharge of Dry Additive

    100 L/min

    Spiral Conveyor

    12”

    Blender Tub Capacity

    1.5 m3
