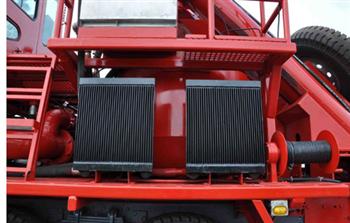

HSC210 Mobile Blending Units

HSC210

HSC210 mobile blending units are widely used in oilfield for oil exploitation. With stable working performance and large blending capacity, this trailer mounted fracturing blender can supply abundant sand slurry for multiple on-line working fracturing units. It is driven with hydraulic oil power generated by the diesel engine. Then, oil pumps are put into motion by the transfer case, and actuate each motor to conduct processes like sand delivery, blending, cross-link, and so on. HSC210 mobile blending units are utilized for heavy duty fracturing operations.

Click to enlarge
  • Features
    • 1. It features good cross-country capacity and high displacement.

    2. With high displacement, one blender is enough for heavy duty fracturing operation.

    3. HSC210 mobile blending units are driven with power generated by deck and chassis engines, and the installed power is up to 500 HP.

    4. This trailer mounted fracturing blender is equipped with multiple automatic control systems, including liquid level control, density control, liquid additive control, dry additive control and discharge control system. What’s more, data acquisition, feedback and programmable control operations can be easily realized.

  • Parameters

    • Product

    HSC210MobileBlending Units

    Chassis

    Beiben 6 × 4/ Beiben 8 × 4

    Deck Engine

    Cummins KTA19-450/DDC S60

    Transfer Case

    Imported

    Suction Centrifugal Pump

    10 × 8 × 14

    Discharge Centrifugal Pump

    10 × 8 × 14

    Maximum Displacement

    12 m3/min

    Maximum Pressure

    0.5 Mpa

    Maximum Sand Delivery Capacity

    7456 kg/min

    Discharge of Liquid Additive

    10-500L/min

    Discharge of Dry Additive

    100L/min

    Spiral Conveyor

    10”

    Blender Tub Capacity

    1.2 m3
