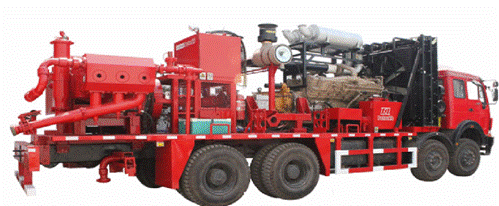

YLC105-1340 Fracturing Truck

YLC105-1340

YLC105-1340 fracturing truck is equipment with 3ZB105-1340 triplex fracturing pumps. It is suitable for shallow, medium and deep well fracturing operations in oil and gas fields. Maximum pressure of its fracturing pump can reach up to 105 MPa. This truck is mainly composed of chassis, deck engine, hydraulic transmission, triplex plunger pump, high & low pressure manifolds and hydraulic/air control system.

Click to enlarge
  • Features

    • 1. Adopting 1800 type triple plunger pump, YLC105-1340 Fracturing Truck is suitable for different pumping operations, including fracturing with prop frac fluid, acidizing, high pressure pumping and pressure testing

    2. Remote control box, instrument van and network control technologies endow this fracturing unit with reliable and safe fracturing operations.

    3. It is equipped with double overpressure protection device.

    Product

    YLC105-1340 Fracturing Truck (1800 Fracturing Truck)

    Chassis

    Beiben 8 × 4/8 × 8     Optional: BENZ/MAN

    Deck Engine

    Cummins KTA50-G8 (2000 hp)

    Deck Gearbox

    BY2060

    Plunger Pumper

    1800 Triple Plunger Pump

    Maximum Pressure

    105 Mpa

    Weight

    31600 kg

    Size

    11300 mm ×2500 mm×3900 mm

  • Performance Parameters(Motor Rotation Frequency n=1900 r/min)

    • Shift

    Specific Water Cycle

    Displacement (L/min)

    Pressure (MPa)

    Diameter

    4”

    4-1/2”

    5”

    4”

    4-1/2”

    5”

    I

    76

    378

    478

    590

    105

    100

    80

    II

    107

    527

    666

    823

    105

    100

    80

    III

    131

    646

    818

    1006

    105

    87

    68

    IV

    182

    900

    1138

    1401

    79

    62.9

    49

    Ⅴ

    287

    1416

    1793

    2213

    50

    40

    31

    Ⅵ

    332

    1639

    2075

    2561

    43

    34

    26

    Related Product

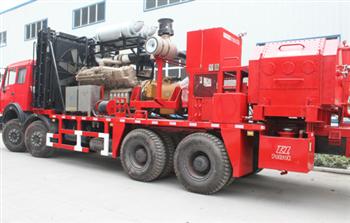

    • YLC105-1490
