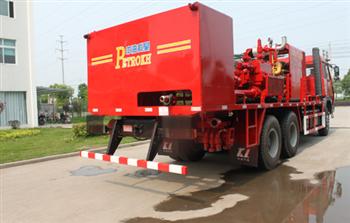

YLC70-600 Acid Fracturing Truck

YLC70-600 Acid Fracturing Truck

YLC70-600 acid fracturing truck is a stand-alone unit for fracturing operations. It consists of chassis, deck engine, hydraulic mechanical transmission case, triplex plunger pump, high/low pressure manifolds, measuring tank, manipulation system, operation cabin, etc.1. YLC70-600 acid fracturing truck features high pressure, large displacement, convenient operation, etc. 2. It is available for many kinds of pumping work, such as hydraulic fracturing, acidification fracturing, high-pressure pumping of heterogeneous liquids, pressure testing, and so on.

Click to enlarge
  • Features
  • 1. YLC70-600 acid fracturing truck features high pressure, large displacement, convenient operation, etc.

    2. It is available for many kinds of pumping work, such as hydraulic fracturing, acidification fracturing, high-pressure pumping of heterogeneous liquids, pressure testing, and so on.

  • Parameters
  • Product

    YLC70-600 Acid Fracturing Truck

    Chassis

    Beiben 6 × 4 / Shacman 6 × 4

    Deck Engine

    Cummins KTA19-450/525 or CAT

    Deck Gearbox

    BY400/Allison OFS4700

    Plunger Pumper

    600

    Maximum Pressure

    70 Mpa

    Weight

    18000 kg

    Size

    ≈9500 mm×2500 mm×3800 mm
