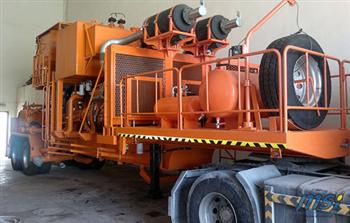

Trailer Mounted Acidification Pumper

Trailer Mounted Acidification Pumper

Trailer mounted acidification pumper is widely used for oil well stimulation. In sandstone formations, the acids help enlarge the pores, while in carbonate formations, the acids dissolve the entire matrix.


  • Acidizing
  • Acidizing refers to the stimulation of a reservoir formation by pumping a solution containing reactive acid to improve the permeability and enhance production of a well. Acidizing can be divided into two categories:

    1. Matrix acidizing: it is mostly used in sandstone formations. With trailer mounted acidification pumper, acid is pumped into a well at low pressures, dissolving sediments and mud solids, increasing the permeability of the rock, enlarging the natural pores, and stimulating the flow of oil and gas.

    2. Fracture acidizing: it is mostly used in carbonate formations. It involves pumping acid at higher pressures, but still lower than those used during fracking. The acids fracture the rock, allowing for the flow of oil and gas.

  • Features of Trailer Mounted Acidification Pumper
  • 1. Acid Transport Trailers

    2. Tandem or Tridem units

    3. Tanks Constructed of FRP (Fibre Glass)

    4. Single or Multi-Compartment Staging

    5. Electronic Float Level Gauges

    6. DOT Compliant

  • High-Pressure 600 HP Trailer Mounted Acidification Pumper

  • 1. Tandem Axle Tractor

    2. 600 Hp Cummins Diesel Engine

    3. 70 Mpa (10,000 Psi) Pressure Rating Long Stroke Pump

    4. Integral Treating Iron

    5. Deep Reduction Transmission for Low Pump Rates10 L/min to1,000 L/min (2.6 gal/min to265 gal/min)

    6. Twin Stainless Steel4.2 m3(1,110 gallons) Total Displacement Tanks

    7. Electronic Recording Package for Rate, Volume and Pressure

    8. Chemical Transfer Pump Product Loading

    9. Climate Controlled, Enclosed Operator Cabin

    10. Remote Operations Control Panel

    11. Full Complement of Required Safety Equipment

    12. Two-Way Radio Communications
