YLC105-1200 Acidizing Unit

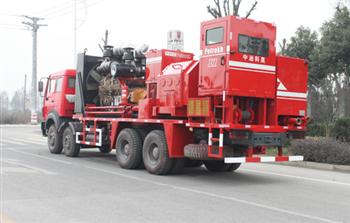

YLC105-1200 Acidizing Unit

YLC105-1200 acidizing unit is equipped with a horizontal triplex single function plunger pump. When it is working, the plunger pump is driven by the car diesel engine, while during driving, the pump is driven by the chassis engine. This triplex pump acid equipment is mainly used for deep/medium-deep/shallow well acidification in oilfields. Besides, it can also be utilized to wash oil/gas/petroleum wells, conduct pressure testing, and so on.

Click to enlarge
  • Features
  • 1. YLC105-1200 acidizing unit adopts late-model 1800 type triplex plunger pump, which endows this unit with great working performance and convenient maintenance.

    2. It is applicable for multiple kinds of pumping work, including hydraulic fracturing with proppants, acidizing fracturing, high pressure heterogeneous liquids pumping, pressure testing, and so on.

    3. In YLC105-1200 acidizing unit, there is a cabin specially for operation, which makes manipulation more convenient.

    Parameters

    Chassis

    Norther Benze 8 × 4

    Engine

    KTA38-C1200

    Transmission

    BY920

    Plunger Pump

    3ZB-1120

    Max. Working Pressure

    99 Mpa (4”Plunger)

    Max. Flowing Rate

    2552 L/min (5”Plunger)

    Optional Plunger Size

    4”  4-1/2”  5”

    Max. Input Power of Plunger Pump

    1120 KW

    L × W × H

    2199 mm ×1472 mm×1113mm

    Weight

    ≤4500 kg

  • Specifications of YLC105-1200 Acidizing Unit
  • Shift

    Specific Water Cycle

    Displacement (L/min)

    Pressure (MPa)

    Plunger Diameter

    4”

    4-1/2”

    5”

    4”

    4-1/2”

    5”

    I

    78

    385

    487

    602

    105

    86

    69

    II

    116

    575

    728

    899

    72

    57

    46

    III

    161

    797

    1008

    1245

    52

    41

    33

    IV

    240

    1184

    1498

    1850

    35

    28

    22

    330

    1633

    2067

    2552

    25

    20

    16
