Auto Cement Mixing Equipment Home > Products

Auto Cement Mixing Equipment

  • Introduction

    • Auto cement mixing equipment is a skid or trailer mounted unit that functions to fully mix cements used for oilwell stimulation. It utilizes patented high-energy mixing system and CAMTM continuous automated mixing system during cementing. Prtrokh cement blending unit is ideal for both onshore and offshore oilfield operations because it can consistently deliver uniform and well blended cement slurries into oil wells.

  • Features of Auto Cement Mixing Equipment

    • 1. Diesel Engine to Provide Power to the Hydraulic System
    2. Hydraulic System to Operate the Centrifugal Pumps
    3. A manifold System to Allow for Boosting the Triplex Pumps of a Pumping Unit
    4. CAM™ Continuous Automatic Mixing System
    5. User Friendly Operation Control Console
    6. Density Control- Automatic and Manual Hydraulic
    7. High Energy Mixer
    8. Built-in Pre-Job System Check
    9. Built-in Manual Simulator
    10. Built-in Data Recording

  • Typical Product

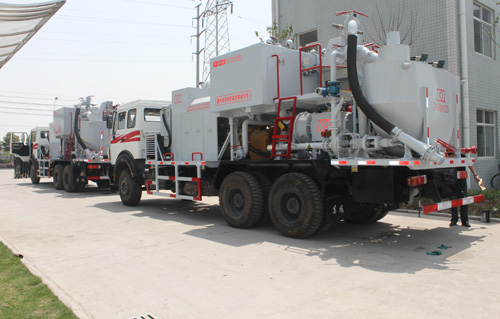

    • GJC45-21 Auto Cement Mixing Equipment

  • Parameters of Auto Cement Mixing Equipment
    • Product GJC45-21 Cementing Unit
    Chassis Beiben 6 × 4/6 × 6/ Shacman 6 × 4
    Deck Engine Cummins KT19-C525/DDC S60
    Deck Gearbox BY400/Allison OFS4700
    Plunger Pump 600 Pump
    Maximum Pressure 45 MPa
    Maximum Displacement 2100 L/min
    Injection Centrifugal Pump 4 × 3/2 × 3 (Optional)
    Priming Centrifugal Pump RA 6 × 5/ PN 6 × 5 (Optional)
    Water-Supply Centrifugal Pump 4 × 3/ 2 × 3 (Optional)
    Weight 22000 kg
    Size ≈10250 mm × 2500 mm × 3850 mm
