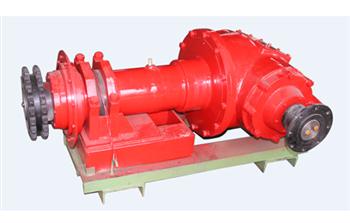

Right Angle Gear Box

Right Angle Gear Box

Right angle gear box (angle gearbox) transfers torque through a pair of bevel gears, each of which is perpendicular to the other. A transmission shaft is utilized to connect the power input shaft with the output shaft. When the direction of a torque is changed by the bevel gears, the torque is put out through the chain wheel on the power putout shaft. Right angle gear box is one of the most important transmission parts in workover rigs and drilling rigs.
